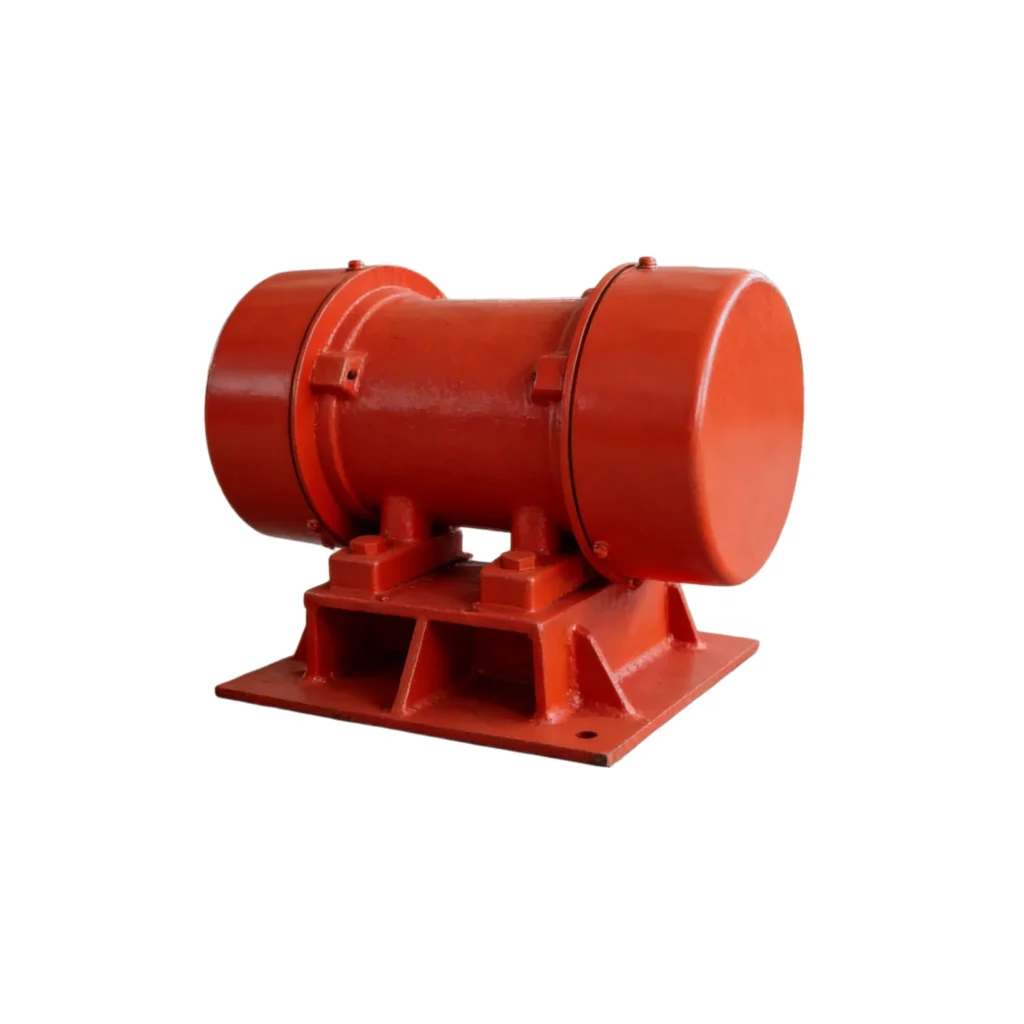

LZF Series Bin Vibrator
- Used for hoppers, storage tanks, silos, and other equipment to prevent material blockage and improve material flow
- Available in multiple specifications with a wide range of centrifugal forces to meet different application requirements
- Adjustable eccentric weights allow precise control of vibration intensity for optimal performance
- Suitable for continuous operation with reliable performance and low maintenance requirements
- Compatible with variable frequency drives (VFD) for flexible speed adjustment and efficient operation
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
Application
Hoppers, storage tanks, silos, and other material handling equipment for preventing blockages and ensuring smooth material flow
Feature
Centrifugal force: 1 ~ 30 kN (adjustable on each model)
Available voltages from 220V to 660V
Windings impregnated with high-quality insulating materials
Adjustable eccentric angle for precise centrifugal force control
Advantage
Modular design for flexible customization
Multiple electrical configurations for global applications
Wide range of centrifugal forces for various applications
Options
2, 4, and 6 poles
Three-phase versions
AC and DC versions available
Specifications
| Parameter | Value |
| Material | Ductile Cast Iron |
| Mounting Type | Horizontal,Direct-Welded |
| Centrifugal Force | 1-30 kN |
| Voltage | 220V/380V/660V |
| Frequency | 50Hz/60Hz |
| Poles | 2/4/6 |
| Speed | 3000/1500/1000 rpm |
| Insulation Class | Class A/E/B/F/H |
| Protection Class | IP54-IP66 |
| Duty Type | S1(Continuous Duty) |
| Ambient Temperature | -20℃ to +40℃ |
*Choose the suitable specifications based on your requirements, and contact us for customized solutions
